[Features]
The laser welding system utilizes the high thermal energy of laser power and concentrated fixed-point welding technology, which could effectively process the small parts and make up for the shortcoming of traditional argon arc welding technology. And it could greatly improve the strength and quality of welding by avoiding the thermal strain and after-treatment.
[Scope of application]

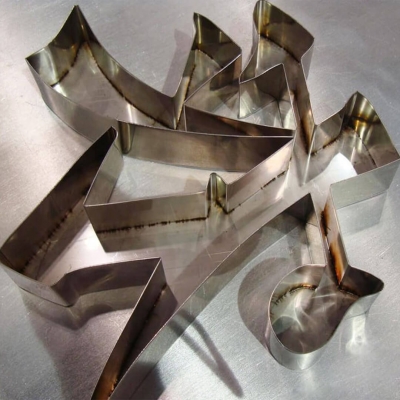

H500S laser welding machine is widely applied in the welding of various fine characters, fine work characters, mirror characters, titanium characters, galvanized plate characters, advertising characters, metal signs and LED metal character shells.
[Parameter]
|

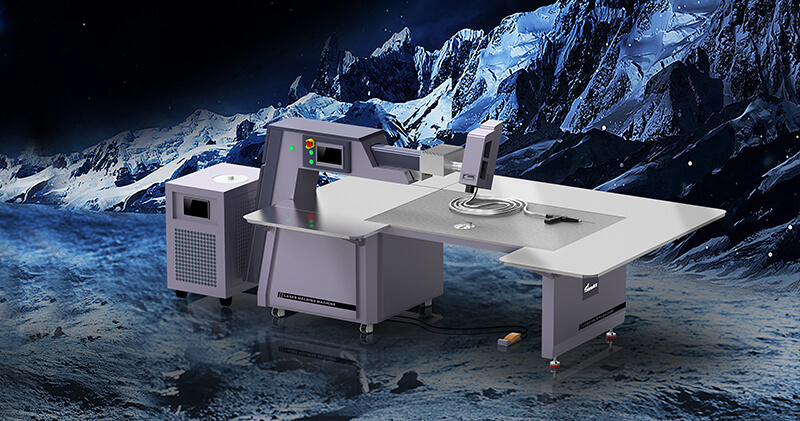

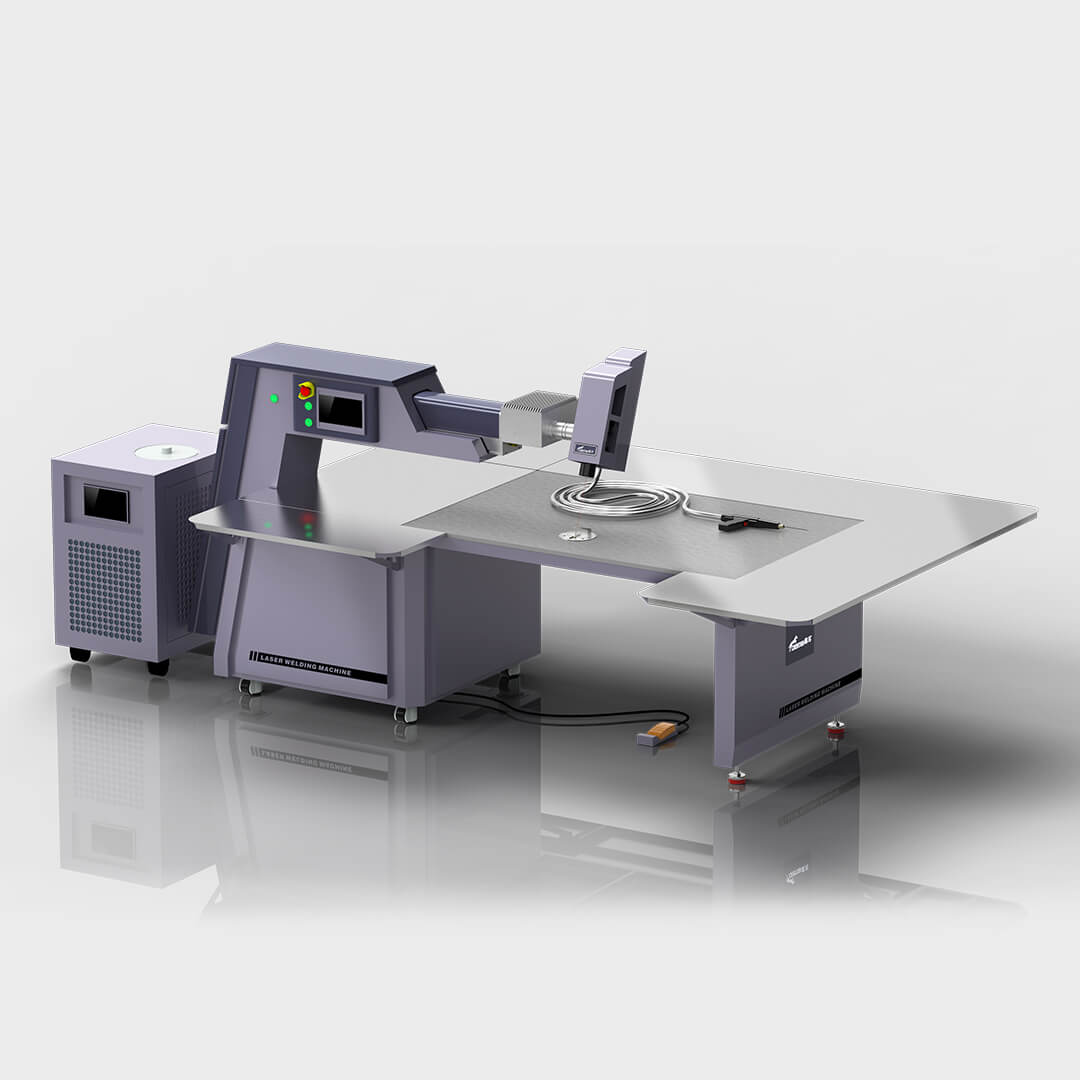

Dema-laser welding machine
|
|
Model：
|
H500s (Optional handheld)
|
|
Overall dimensions (length x width x height) large table
|
Large table 2900x1800x1400
|
|
Maximum output power (W)
|
≈500W
|
|
Electric control cabinet constant temperature control
|
Standard industrial constant temperature system
|
|
Smoke
|
Exhaust standard
|
|
Solder spot positioning
|
Red light fast positioning + CCD positioning
|
|
Laser wavelength (um)
|
1064
|
|
Maximum energy of single pulse
|
180J
|
|
Laser welding frequency (HZ)
|
0.5-40
|
|
Laser welding depth (mm)
|
0.1-1.8
|
|
Pulse width (ms)
|
0.5-20
|
|
Spot size (mm)
|
0.2-2
|
|
Machine power
|
4.5KW
|
|
Focusing lens
|
F150
|
|
Laser cavity
|
Gold cavity
|
|
Laser power supply
|
Dual power supply
|
|
Power requirements
|
Three-phase 380VAC 50Hz
|

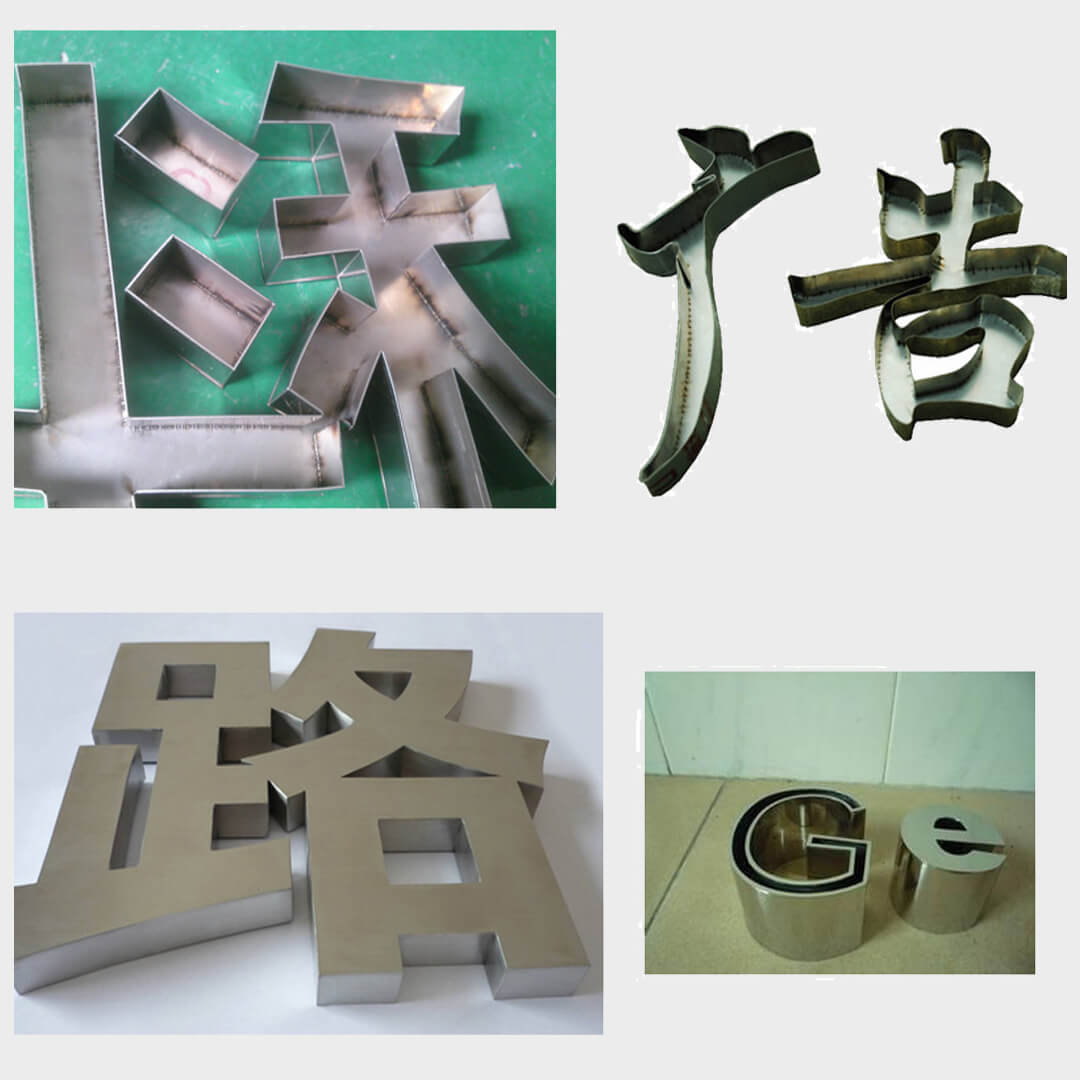

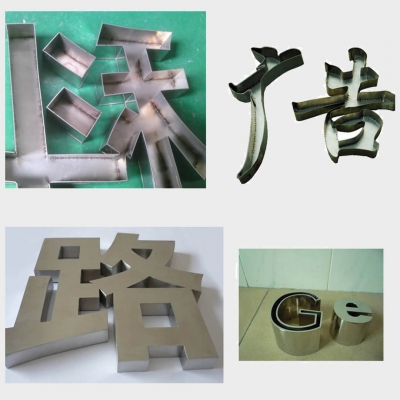

[Case]
[Certifications]
