[Prameter]
|

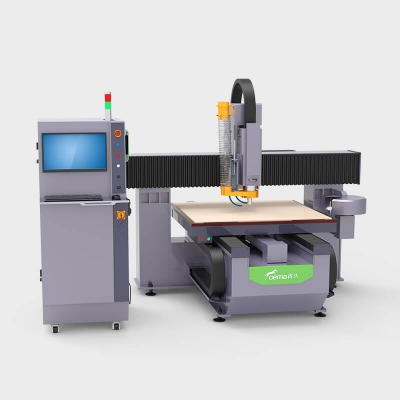

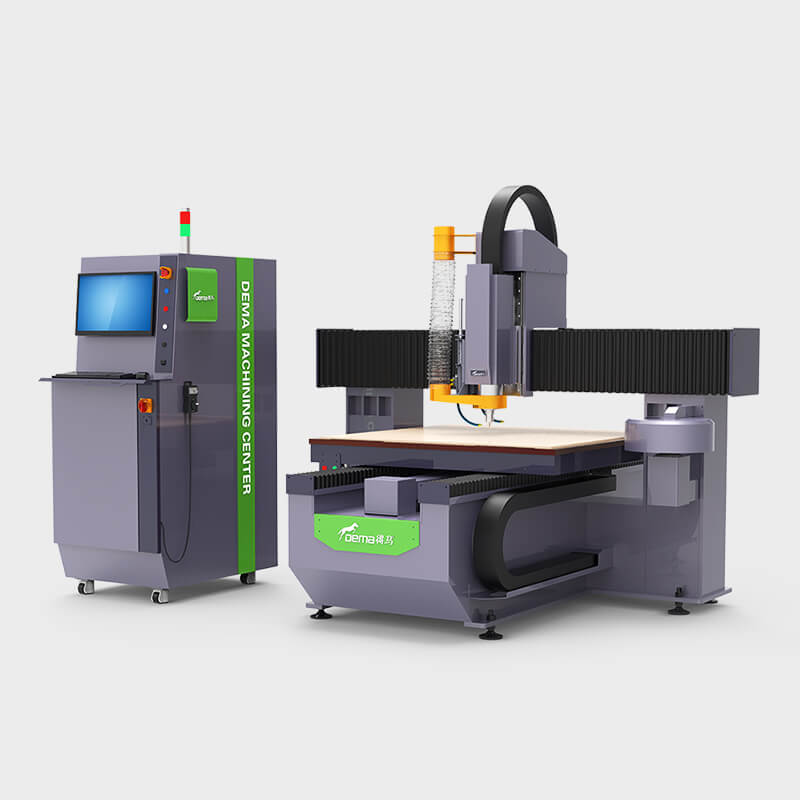

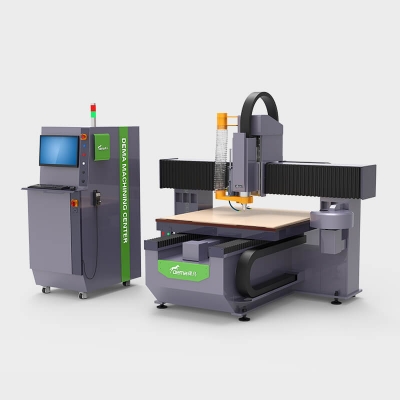

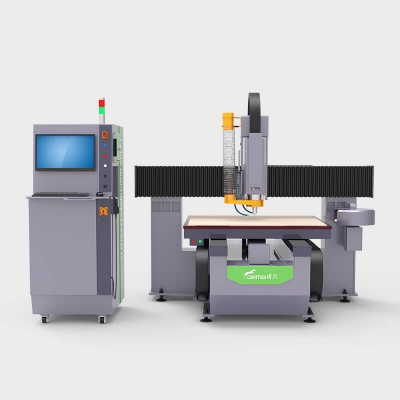

W12 Precision Machining Center
|
|
Model
|
W12-1313
|
|
Equipment Dimensions
|
2500mm*2500mm*2000mm
|
|
Machining Dimensions
|
1220mm*1220mm
|
|
Overall Dimension
|
2500 mm in X-direction / 2500 mm in Y-direction
|
|
X/Y/Z Transmission Mode
|
High-precision Ball Screw
|
|
Table Structure
|
Zoned Vacuum Suction
|
|
ATC
|
Tool Magazine with 8 Tool Positions
|
|
Spindle Motor
|
5.5 kW Water-cooled Spindle
|
|
Spindle Speed
|
30000r/min
|
|
Moving Speed
|
50m/min
|
|
Working Speed
|
15m/min
|
|
Working Voltage
|
AC380V/50Hz
|
[Core Component Configuration]
■ Unique Table-supported Structure
The machine features a unique table-supported structure, which significantly improves the machining accuracy and vibration resistance of the machine tool.
■ High-flex cable with unyielding durability
Crafted from imported materials, this high-flex cable is engineered to withstand extreme stress, ensuring reliable performance even after millions of repetitive motions. Its robust construction prevents breakage during continuous, high-frequency operations, extending service life and minimizing downtime.
■ Mature System
Equipped with an industrial-grade control system, it ensures that the machine tool operates at high speeds with precise, jagged-free finishes, clear contours, powerful functionality, and user-friendly operation.
■ Disc-type Tool Magazine
The specially designed rotating tool magazine can hold up to 8 tools simultaneously, streamlining the machining process and significantly boosting work efficiency.
[Application Industries]
■ Advertising Industry Applications
Suitable for processing advertising materials such as acrylic, MDF (Medium-Density Fiberboard), double-color board, and PVC foam board.
■ Sheet Metal Processing Industry
Suitable for processing plastic chemical components, PCB (Printed Circuit Boards), compact laminate sheets, epoxy resin, ABS, PP, PE, and other carbon-based composites.
■ Craft Industry
Suitable for processing materials such as artificial stone, PVC, wood, bamboo, plexiglass, copper, and aluminum in the craft manufacturing sector.
■ Furniture Industry
Ideal for cutting and engraving various composite panels used in cabinet doors, wooden doors, rosewood furniture, antique-style furniture, and other woodworking applications.
■ Decoration Industry
Capable of engraving intricate patterns and text on materials such as screens, wave boards, bamboo, marble, and acrylic sheets for decorative applications.
■ Electrical Appliance Industry
Suitable for processing insulation structural components commonly used in motors and electrical appliances.

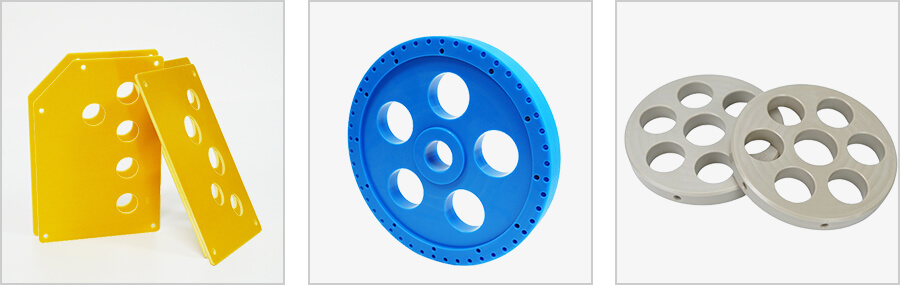

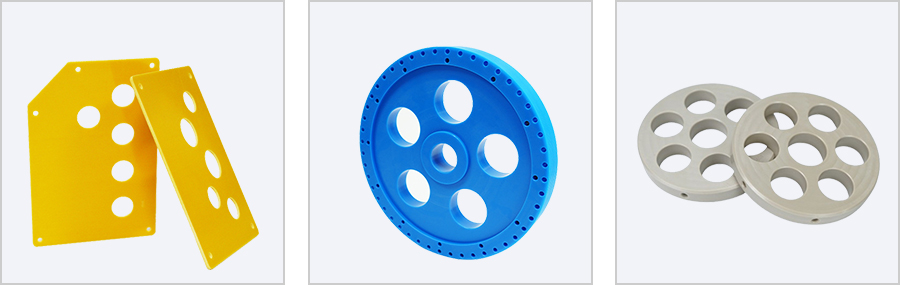

[Sample Display]
